Description

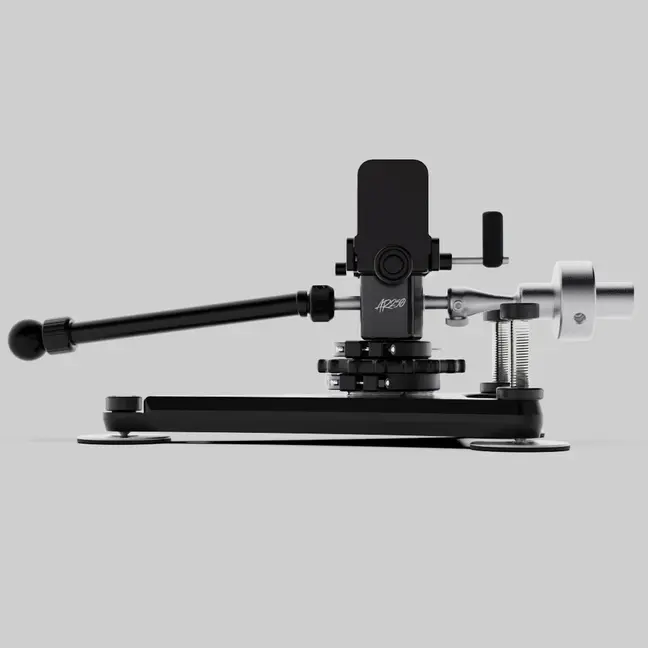

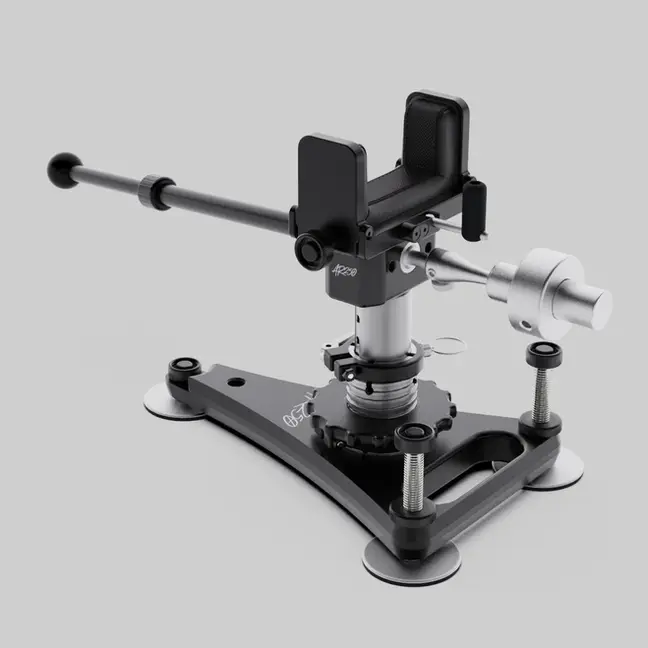

A front rest specially designed for benchrest rimfire and air rifle shooting, the AR250 takes its name from Air Rifle, Rimfire, and the perfect score of 250 according to WRABF competitions. Balancing mobility, performance, and cost, this rest features a rigid, extendable central post for 360-degree swing and two elevation adjustment systems for rapid and smooth height changes.

It provides a stable shooting platform for precision shooting, ensuring accurate and repeatable results. The versatile design makes it suitable for various shooting disciplines and is crafted to meet the demands of competitive shooters. The AR250 joystick travel is designed to be able to cover most target paper from WRABF to NRA/ARA at various shooting distances (25-100yrd & 25-100m). Fitted with an adjustable counterweight system for smooth joystick action, the newly designed top plate secures the custom front bag firmly in place with minimal play. The AR250 comes in 3 options according to your choice of front bag size—2 1⁄4 inches, 3 inches, or both.

In the box

AR250 rest + your choice of front bag size (2 ¼”/ 3”/ both)
Joystick and adjustable counterweight
3 long leveling screws with counter nuts and 1 short leveling screw
3 BR feet with hard neoprene rubber bottoms
User manual with exploded drawing
Spare bolts and accessories

Features

Weighs 7.8 lbs with all standard accessories attached
Made mostly from black and gunmetal grey anodized aluminum parts
Rigid telescopic central post with 2 elevation adjustment systems and fail-safe mechanism
360-degree top swing
Rapid elevation system similar to telescopic luggage handles with safety locating plunger
Rotating mariner wheel for smooth and accurate elevation adjustment, resting on a precise needle thrust bearing
Custom lever locking mechanisms for both elevation systems, eliminating any play from the central telescopic post
Telescopic joystick with twist lock, 7.5” by default and 12” when fully extended
Reversible shooting direction of the base (triangle base tip facing away or towards target)
Adjustable counterweight system capable of supporting rifles weighing 8.5 to 15 lbs
Adjustable locking lever location at 90 degree interval
Top plate capable of holding down custom front bag firmly with zero play when side plates are tightened. Remove one side plate to access front bag.
Removable bubble level, can be placed on left or right side of top plate
Adjustable stopper with round or flat side touching rifle stock
Two available front bag sizes: 2 1⁄4” and 3”
Joystick travel coverage ranges:

29” distance from rear bag to rest

25yrd: vertical 8.5” horizontal 15.1”

50yrd: vertical 16.9” horizontal 29.8”

75yrd: vertical 25.1” horizontal 44.5”

100yrd: vertical 33.5” horizontal 59.9”

73cm distance from rear bag to rest,

25m: 24cm vertical & 42cm horizontal

50m: 47cm vertical & 83cm horizontal

75m: 70cm vertical & 124cm horizontal

100m: 93cm vertical & 165cm horizontal

*Closer Distance between the rear bag and the front rest will result in even more coverage
